Meetup 6: Working With Text and Strings

George I. Hagstrom

2025-09-29

Week Preview

This week is all about text and categorical variables
Key packages stringr, forcats and also the regex language
Chapters 14-16 in R4DS
I’ll release a video coding analysis of a baby names dataset

HW Pitfalls

Don’t automatically remove all outliers, decide case by case
Formatting- big variation in submission length this week
- Don’t submit a table that is multiple pages long, find another way

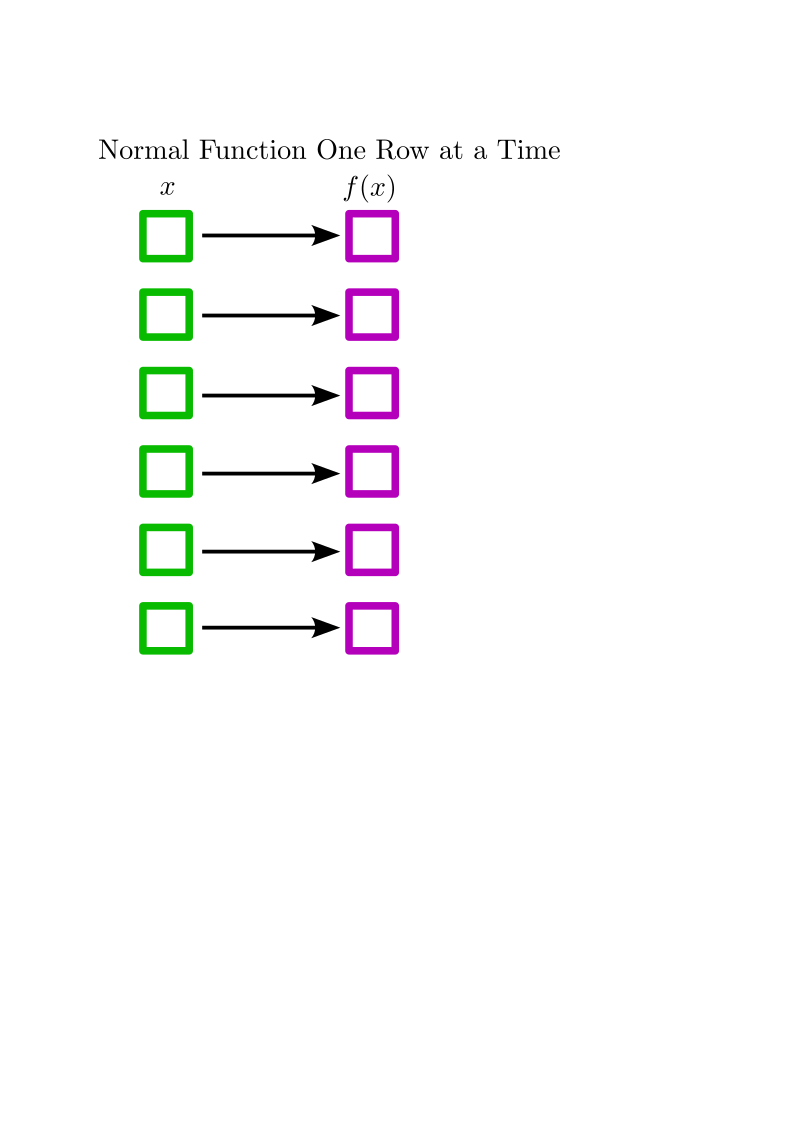

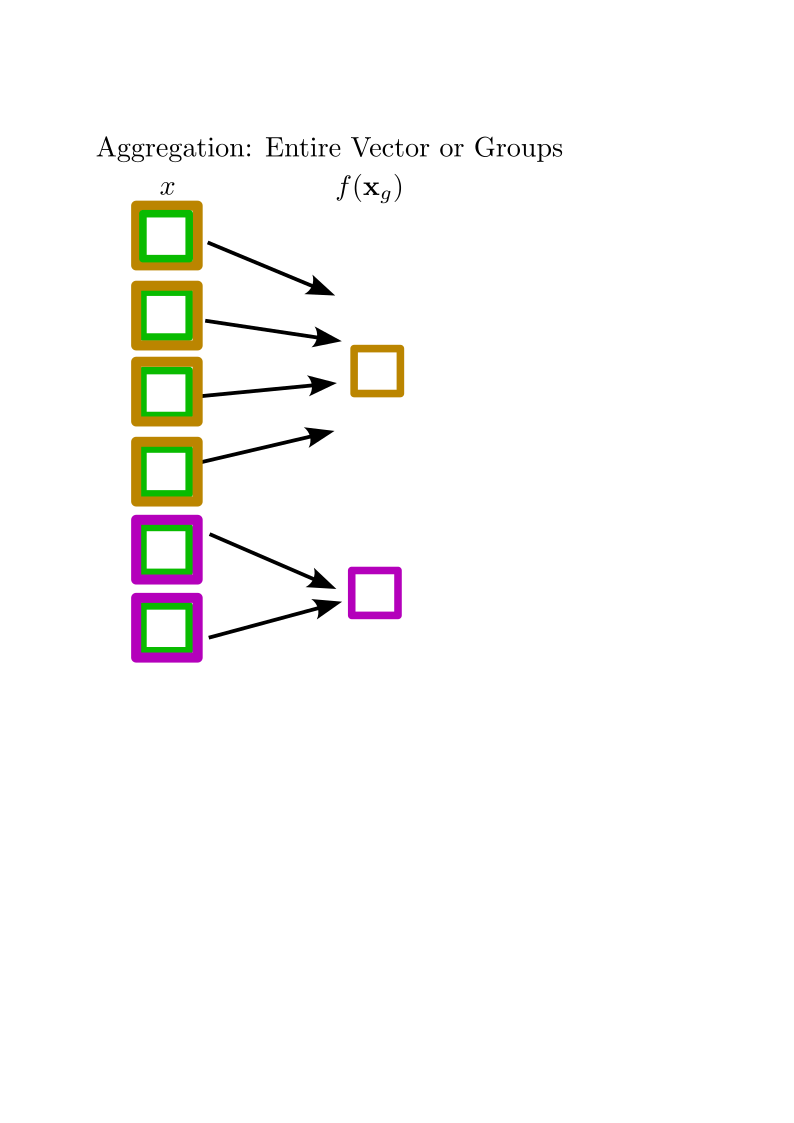

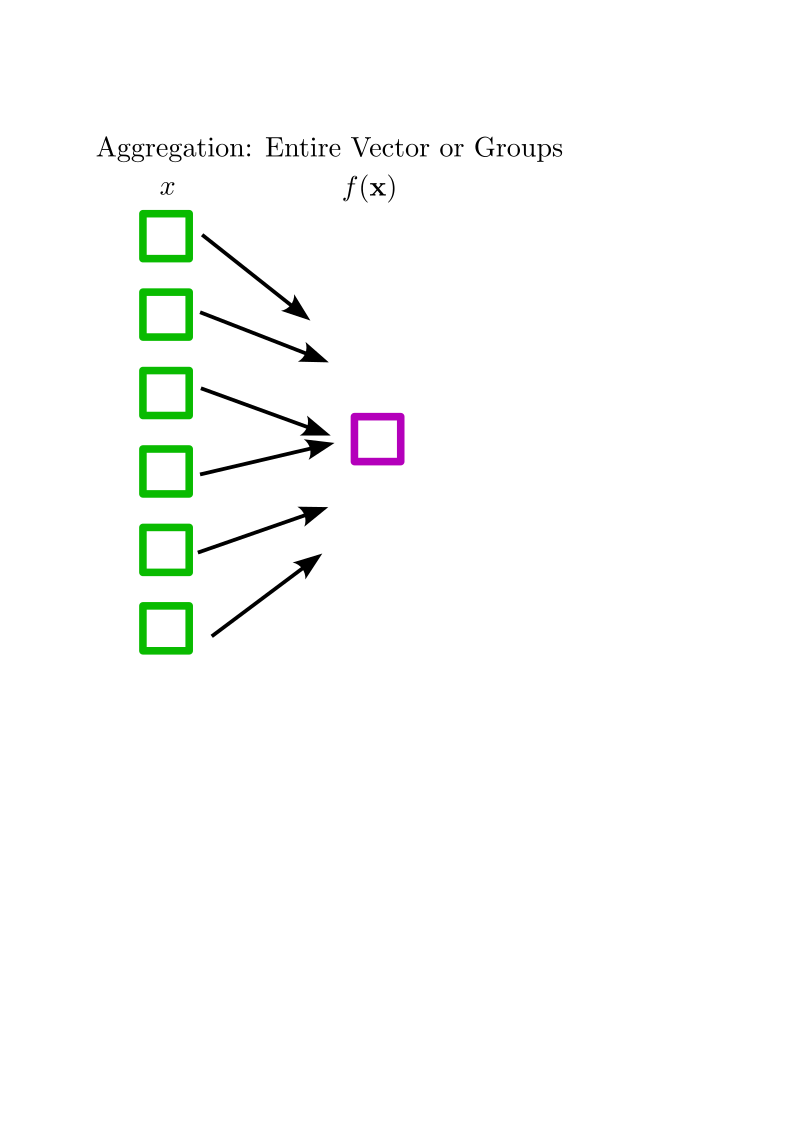

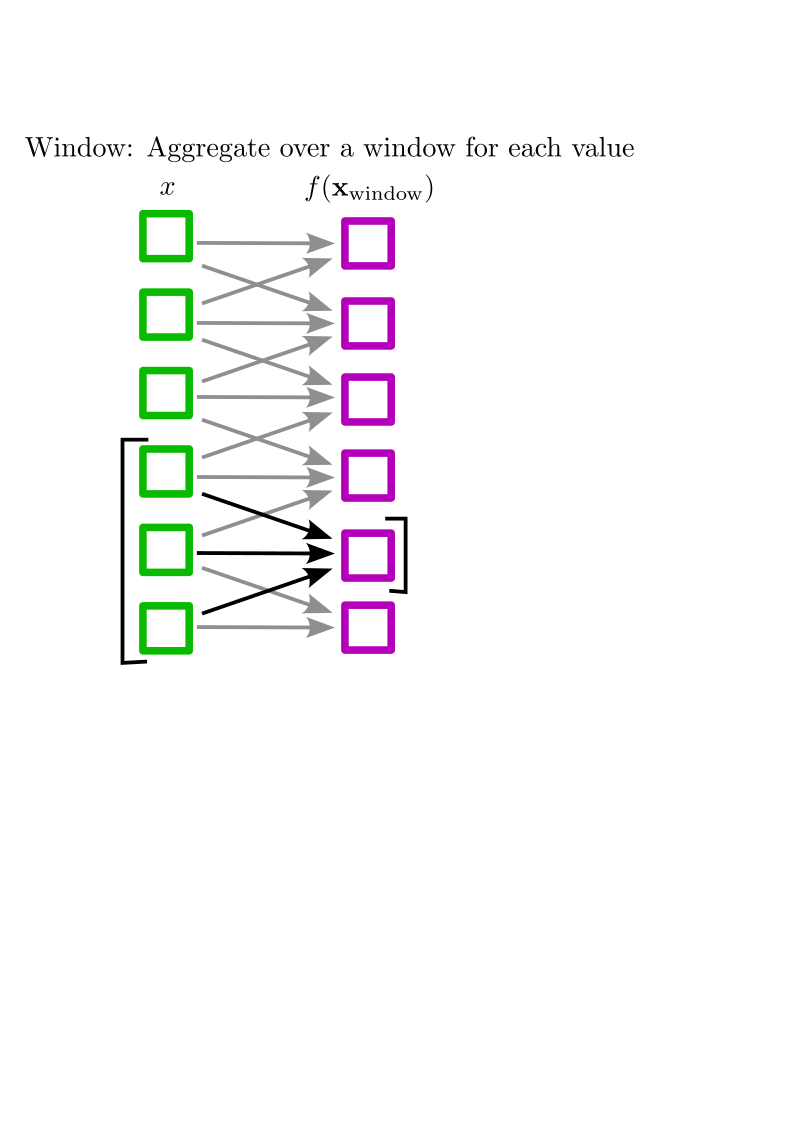

Window Functions

Case Study: Huntington’s Disease

Tandem Repeats: sections of genetic code where short element repeats:
CAGCAGCAGCAGCAGCAGCAG

In certain genes wrong number of repeats causes disease:
Huntington’s Disease:
- CAA and CAG repeats, code for amino acid Glutamine
- 6-35 normal
- 36+ causes disease

Pattern Matching

How to determine number of repeats CAA + CAG repeats in a section of code?

library(tidyverse)
library(kableExtra)
DNA =read_file("Huntington.txt")

DNA |> str_sub(1, 800) |> print()

[1] "\t1 ttgctgtgtg aggcagaacc tgcgggggca ggggcgggct ggttccctgg ccagccattg\n       61 gcagagtccg caggctaggg ctgtcaatca tgctggccgg cgtggccccg cctccgccgg\n      121 cgcggccccg cctccgccgg cgcagcgtct gggacgcaag gcgccgtggg ggctgccggg\n      181 acgggtccaa gatggacggc cgctcaggtt ctgcttttac ctgcggccca gagccccatt\n      241 cattgccccg gtgctgagcg gcgccgcgag tcggcccgag gcctccgggg actgccgtgc\n      301 cgggcgggag accgccatgg cgaccctgga aaagctgatg aaggccttcg agtccctcaa\n      361 gtccttccag cagcagcagc agcagcagca gcagcagcag cagcagcagc agcagcagca\n      421 gcagcagcag caacagccgc caccgccgcc gccgccgccg ccgcctcctc agcttcctca\n      481 gccgccgccg caggcacagc cgctgctgcc tcagccgcag ccgcccccgc cgccgccccc\n      541 gccgccaccc ggcccggctg tggctgagga gccgctgcac cgaccaaaga aagaactttc\n      601 agctaccaag aaagaccgtg tgaatcattg tctg"

Processing Steps

Get rid of tabs, numbers, spaces, newlines:

DNA = DNA |>
  str_remove_all("[0-9]") |>
  str_remove_all("\t") |>
  str_remove_all("\n") |>
  str_remove_all(" ")

DNA |> str_sub(1,60) |> print()

[1] "ttgctgtgtgaggcagaacctgcgggggcaggggcgggctggttccctggccagccattg"

Matching Using regex

Following Regular Expression can match repeats of various lengths: (CAA|CAG){10,}

DNA |>
  str_count("caa") |>
  print()

[1] 179

DNA |>
  str_count("cag") |>
  print()

[1] 471

DNA |>
  str_count("(caa|cag){10,}") |>
  print()

[1] 1

How Long?

DNA |>
  str_extract_all("(caa|cag){10,}") |>
  str_length()/3

[1] 23

DNA |> str_extract_all("(caa|cag){10,}")

[[1]]
[1] "cagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcaacag"

Other Examples

Libraries stringr and regex elevate your ability to work with text
Useful in many domains:
- Email: "\\b[A-Z0-9._%+-]+@[A-Z0-9.-]+\\.[A-Z]{2,}\\b"
- US Zip Code: "\\d{5}([ \\-]\\d{4})?"
- YYYY-MM-DD dates: "/([12]\\d{3}-(0[1-9]|1[0-2])-(0[1-9]|[12]\\d|3[01]))/"

String/Character Basics

Defined by enclosing in quotes:

string1 = c("word",'another word', "multiple\n lines",
            "using \"escapes\" and \u00FCnicode ")
str_view(string1)

[1] │ word
[2] │ another word
[3] │ multiple
    │  lines
[4] │ using "escapes" and ünicode

Special characters:
- "\n" newline
- "\t" tab
- "\" to escape and write special character

Key functions:

str_c(): adds strings together
str_sub(): subsets strings
str_flatten() combines chars in a char vector into single string

str_c("Abraham"," ","Lincoln")

[1] "Abraham Lincoln"

str_sub(c("Abraham","Lincoln"),start=1,end=4)

[1] "Abra" "Linc"

str_flatten(letters)

[1] "abcdefghijklmnopqrstuvwxyz"

Key functions:

str_view() underlying string and pattern matches
str_length() self explanatory
str_count() counts matches with a pattern
str_detect() logical match

str_length("Grizzly Bear")

[1] 12

DNA |> str_count("caa") |> print()

[1] 179

"Lions, Tigers, and Bears" |> str_view("Tiger")

[1] │ Lions, <Tiger>s, and Bears

"Lions, Tigers, and Bears" |> str_detect("Cat")

[1] FALSE

Key functions:

str_replace() and str_replace_all: substitute
str_remove() and str_remove_all(): remove matches
str_extract() and str_extract_all(): pull out matches

"Abraham Linc0ln" |> str_replace_all("0","o")

[1] "Abraham Lincoln"

c("Blueberry","Blackberry","Lingonberry") |> str_remove("berry")

[1] "Blue"   "Black"  "Lingon"

DNA |> str_extract_all("tttttt")

[[1]]
[1] "tttttt"

Regular Expressions (regex)

Regex are a powerful language for describing complex patterns
String search tools often use them by default
Regular Characters:
a-z, A-z, 0-9
Metacharacters:
- . , * , () , [] , {} , | , \ , $ , ? , ^ , +
- These add special meaning to the patterns

Wildcard .

. a symbol that can stand for any character
Find all instances of “a” followed by two letters of any type, followed by another “a”:

words |> str_view("a..a")

 [35] │ <alwa>ys
 [43] │ <appa>rent
 [49] │ <area>
 [53] │ <arra>nge
 [62] │ av<aila>ble
[598] │ par<agra>ph
[801] │ st<anda>rd

Quantifiers `?, +, *`

Find patterns that repeat
? for optional matches:

str = "eTeeTeeeTeeeeT"
str |> str_view("ee?")

[1] │ <e>T<ee>T<ee><e>T<ee><ee>T

+ for repeat matches:

str |> str_view("ee+")

[1] │ eT<ee>T<eee>T<eeee>T

* for any number of repeat matches, including 0:

str |> str_view("ee*")

[1] │ <e>T<ee>T<eee>T<eeee>T

Advanced Quantifiers {m,n}

Use {m,n} to specify at least “m” matches but no more than “n” matches:

AASeq = read_file("HuntingtonTrans.txt") |>
  str_remove_all("\t") |>
  str_remove_all("\n") |>
  str_remove_all(" ")
AASeq |> str_extract_all("Q{2,}") |> print()

[[1]]
 [1] "QQQQQQQQQQQQQQQQQQQQQQQ" "QQQ"
 [3] "QQ"                      "QQ"
 [5] "QQ"                      "QQ"
 [7] "QQ"                      "QQ"
 [9] "QQ"                      "QQ"
[11] "QQ"                      "QQ"
[13] "QQ"

AASeq |> str_extract_all("Q{3,10}") |> print()

[[1]]
[1] "QQQQQQQQQQ" "QQQQQQQQQQ" "QQQ"        "QQQ"

Character Classes

Use square brackets to denote a group of characters to match

words |> str_view("[aeiou]tt[aeiou]")

 [60] │ <atte>nd
[107] │ b<otto>m
[173] │ comm<itte>e
[470] │ l<ette>r
[508] │ m<atte>r

“^” matches everything not in the brackets

words |> str_view("q[^u]")
words |> str_view("q[u]") |> head(5)

[276] │ e<qu>al
[665] │ <qu>ality
[666] │ <qu>arter
[667] │ <qu>estion
[668] │ <qu>ick

Special Characters and Escaping

Use “\” if you need to match a metacharacter for real, i.e.
“\.”, “\\”, “\+” etc
Special character groups also denoted with “" -”\s” space, opposite: “\S” -“\d” number, “\D” not number -“\w” letter or number, “\W” not letter or number
Ranges: “[A-E]”, “[1-4]”
NEED TO DOUBLE ESCAPE IN R!

str_view("abc123","\\d")

[1] │ abc<1><2><3>

Logical Or

“|” allows for specifying alternative expressions to match

fruit |> str_view("apple|berry|melon") |> head(10)

 [1] │ <apple>
 [6] │ bil<berry>
 [7] │ black<berry>
[10] │ blue<berry>
[11] │ boysen<berry>
[13] │ canary <melon>
[19] │ cloud<berry>
[21] │ cran<berry>
[29] │ elder<berry>
[32] │ goji <berry>

Grouping

“()” makes whatever inside act like a group
Example from earlier, finding repeats of a sequence

DNA |> str_extract_all("(caa|cag){3,60}")

[[1]]
[1] "cagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcaacag"
[2] "cagcagcag"
[3] "cagcagcag"
[4] "caacagcaa"

Backreferencing

If something is contained in parentheses, you can reference it using “\1”, “\2”, etc

DNA |> str_extract_all("(......)\\1+")

[[1]]
 [1] "cagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcagcag"
 [2] "ccgccgccgccgccgccg"
 [3] "cagccgcagccg"
 [4] "ggccctggccct"
 [5] "gaggaggaggag"
 [6] "gaggaggaggag"
 [7] "cctcgtcctcgt"
 [8] "cccccaccccca"
 [9] "gggcctgggcct"
[10] "tgagcttgagct"
[11] "aaaaaaaaaaaaaaaaaa"

Anchors

“^” start of string, “$” end of string

words |> str_view("^a.+d$")

[12] │ <add>
[17] │ <afford>
[38] │ <and>
[52] │ <around>
[60] │ <attend>

Boundary

“\b” the boundary of a word

sentences |> str_view("ink") |> head(5)

 [12] │ A rod is used to catch p<ink> salmon.
 [73] │ The <ink> stain dried on the finished page.
 [96] │ Bail the boat to stop it from s<ink>ing.
[148] │ The spot on the blotter was made by green <ink>.
[206] │ The club rented the r<ink> for the fifth night.

sentences |> str_view("\\bink\\b")

 [73] │ The <ink> stain dried on the finished page.
[148] │ The spot on the blotter was made by green <ink>.
[217] │ It is hard to erase blue or red <ink>.
[321] │ Fill the <ink> jar with sticky glue.

Data Science in Context Presentations

Meetup Reflection/One Minute Paper

Please fill out the following google form after the meeting or watching the video:

Click Here
