DATA 609 Meetup 6: Constructing Convex Sets

George I. Hagstrom

Week Summary

Covering Section 2.3 of cvxbook
Material is unusual, normal to feel confused
We will use cvx for first time
- cvxpy
- cvxr
Lab 3 Due this Sunday

Start Thinking About Miniproject

Over next month, start thinking about how your interests relate with something we have covered or are going to cover
Least Squares, Convex Optimization, or Deep Learning/non-convex optimization
Ask me if you want suggestions
Target complexity is homework assignment

Addendum on Cones

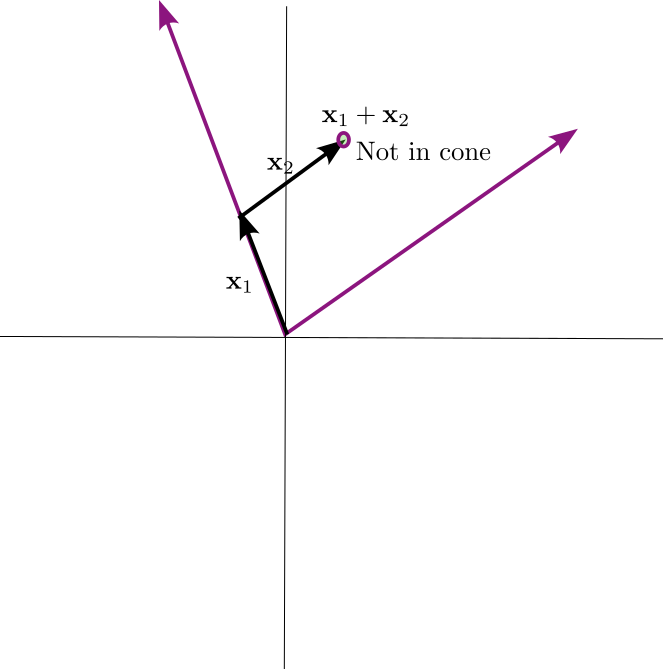

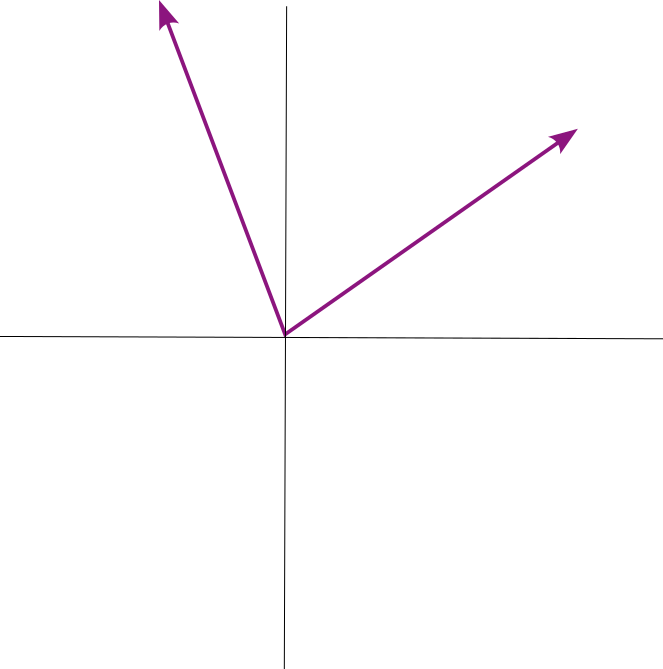

Not all cones are convex!

When is a cone convex?

Convex iff closed under addition

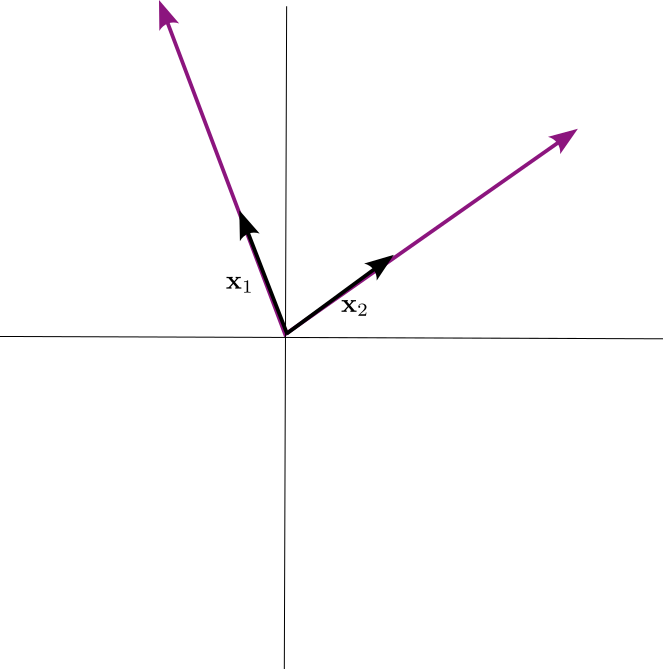

When is a cone convex?

Convex iff closed under addition

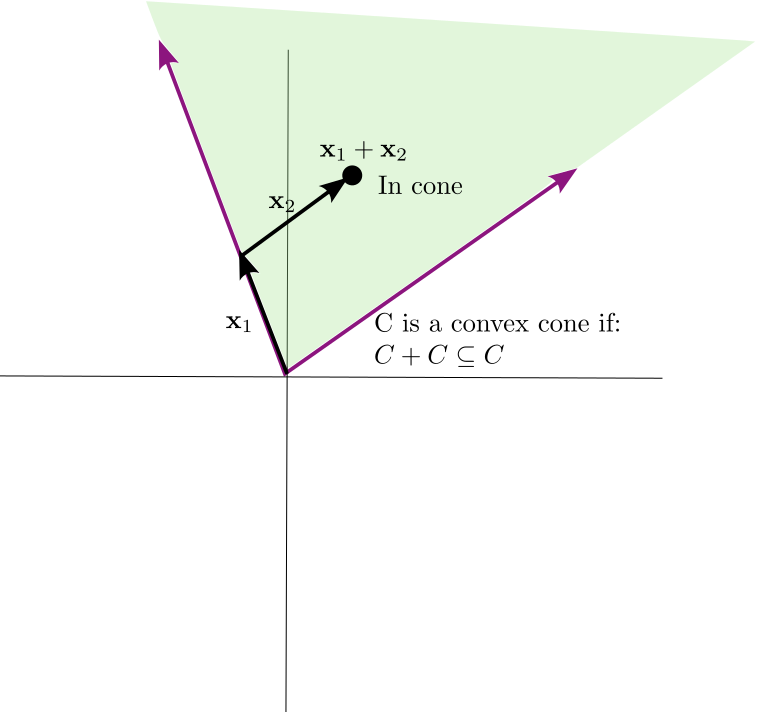

When is a cone convex?

Convex iff closed under addition

How to show a set is convex?

Suppose you have a problem and some constraints

Brute force math:

Try to prove that for every \(\mathbf{x}_1\) and \(\mathbf{x}_2\) in set, \(\theta\mathbf{x}_1+(1-\theta)\mathbf{x}_2\) is in the set, if \(0\leq\theta\leq1\)
Only for simplest sets

How to show a set is convex

Using convex functions (next weeks)

Graph of a convex function
Technically how CVX works

How to show a set is convex

Show how to build your set from simpler convex sets

Intersection
Transformations: Linear/Affine, Perspective, Linear Fractional Mapping

How to show a set is (not) convex

If you are stuck, brute force numerics

Generate random points in set
Check random convex combinations
Wait a long time

Intersection

Intersection is shared points

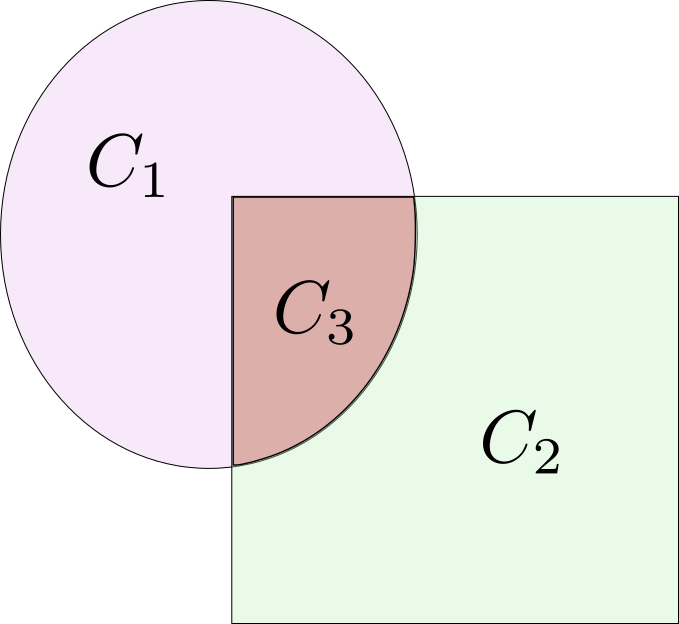

\[ C_3 = C_1 \cap C_2 \]

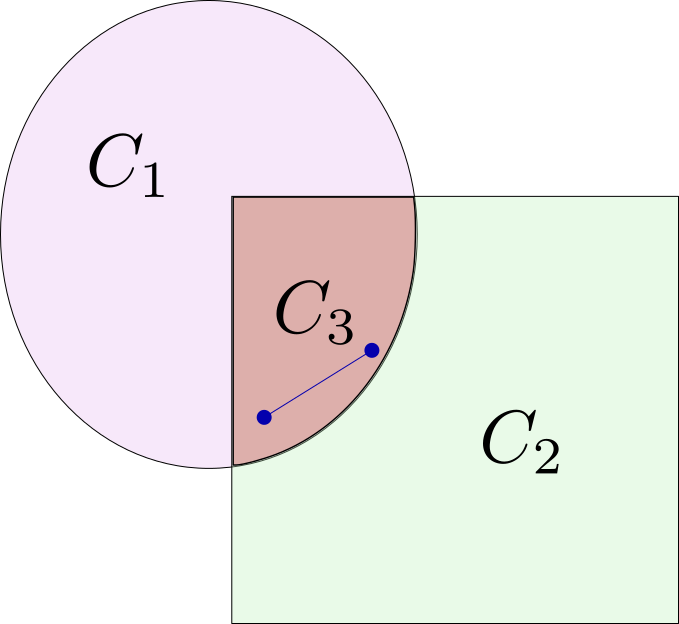

Intersections of Convex are Convex

Even an infinite intersection

Infinite Constraints Example

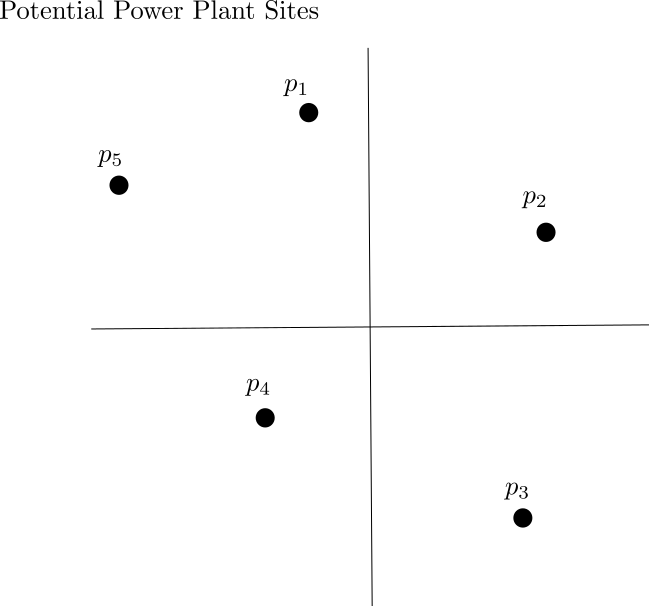

Suppose we can several locations where we are allowed to build some quantity of renewable energy plants.

Infinite Constraints Example

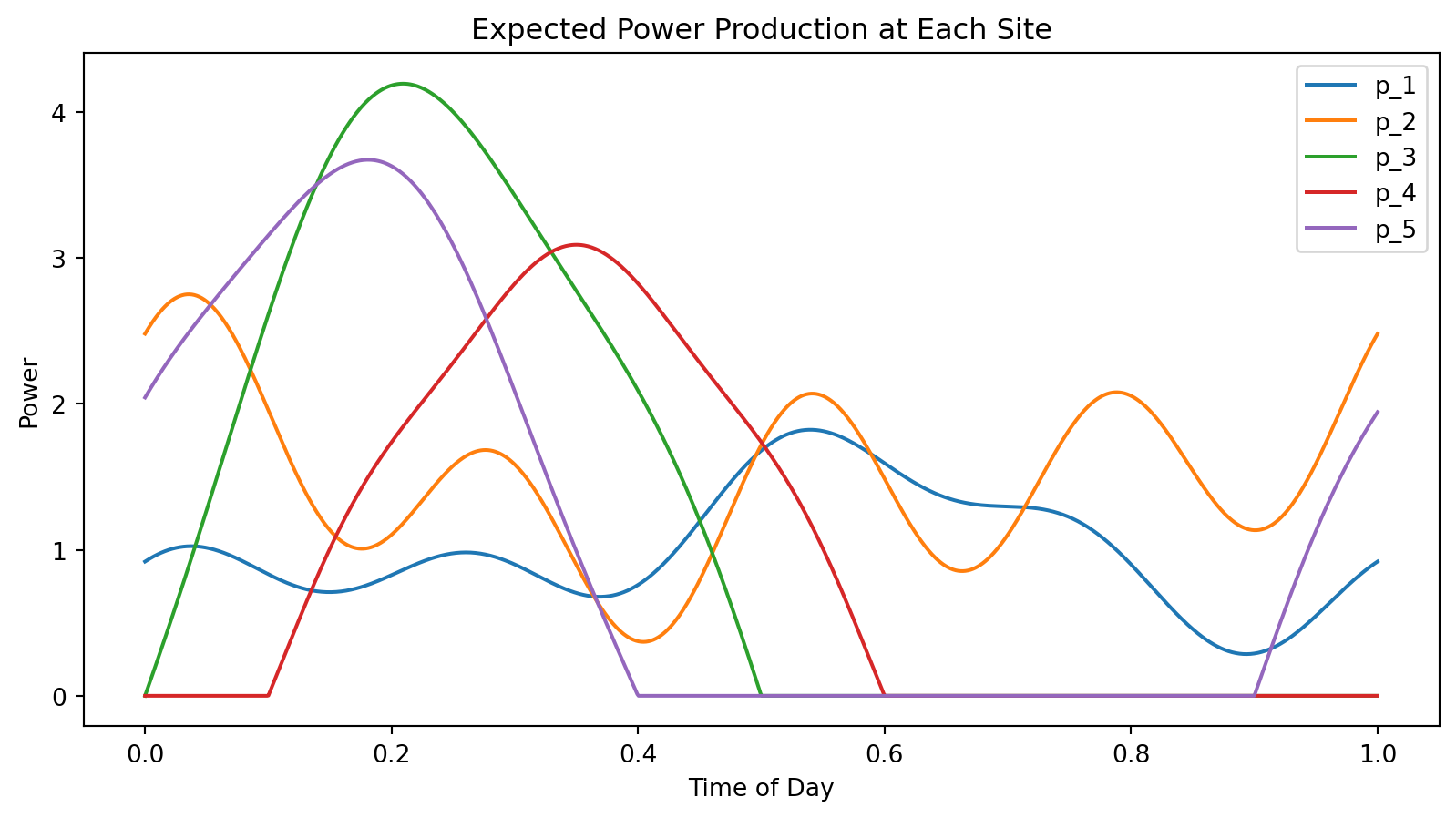

\(p_i(t)\) power function for each plant over a typical day

Infinite Constraints Example

\(p_i(t)\) power function for each plant over a typical day

Infinite Constraints Example

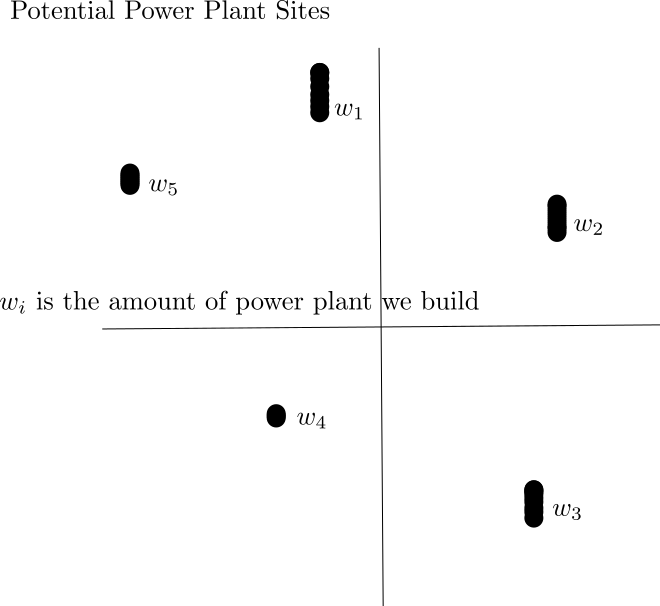

Let \(w_i\) stand for the size of renewable plant we build at location \(i\).

Infinite Constraints Example

The total power generated at time \(t\): \[ p_{tot}(t) = \mathbf{p}(t)^T\mathbf{w} \]

Infinite Constraints

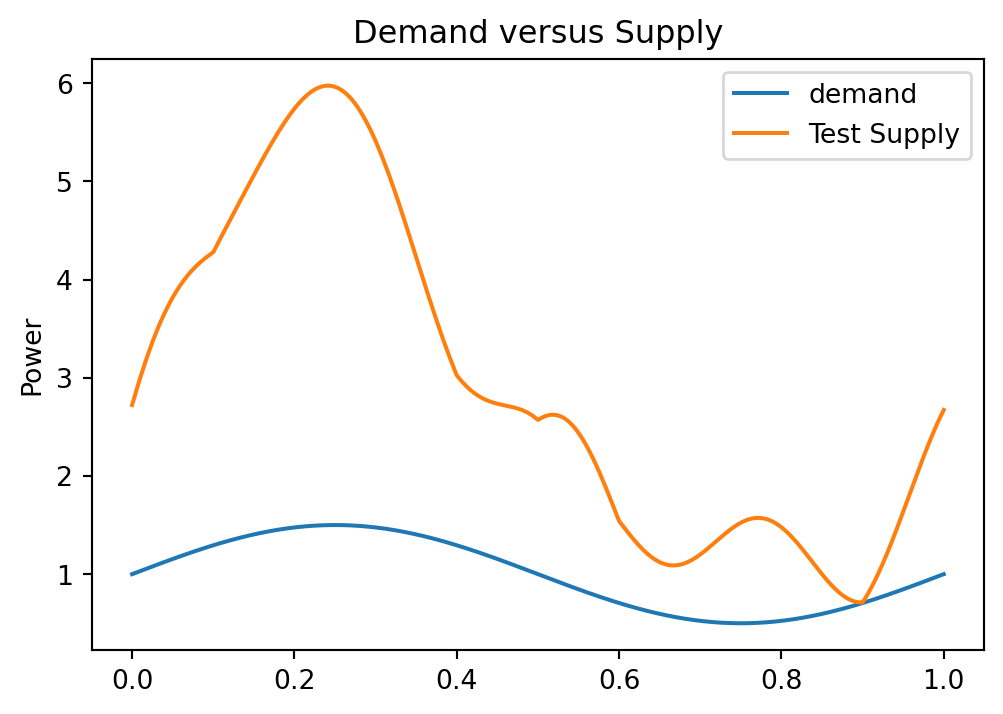

Guarantee that the level of power above demand level:

\[ \mathbf{p}(t)^T\mathbf{w} \geq d_{min}(t) \]

Infinite Constraints

For each individual time point \(t\), this inequality describes a convex set
Because \(\mathbf{p}(t)^T\mathbf{w} \geq d_{min}(t)\) linear in \(\mathbf{w}\)
Take intersection over \(t\) \[ C = \bigcap_t \{\mathbf{w}\,|\, \mathbf{p}(t)^T\mathbf{w} \geq d_{min}(t) \} \]
\(C\) is a convex set

Mapping a Set

Can apply a function \(f\) to an entire set to generate a new set
Doesn’t have to be in the same space: \(f:\, \mathbb{R}^m \mapsto \mathbb{R}^n\)

Mapping a Set

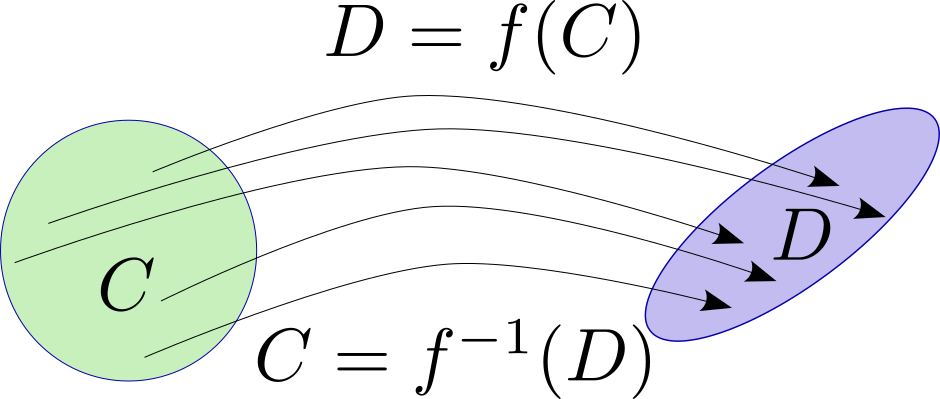

Image of \(C\) under \(f\):

\[f(C) = \{x\, |\, x = f(y)\, \mathrm{for}\, y \in C\}\]

Mapping a Set

Other Direction: Preimage of \(C\) under \(f\):

\[ f^{-1}(C) = \{x\, |\, f(x) \in C\} \]

Linear/Affine Transformations

If \(C\) is convex, and \(f\) is affine \(f(\mathbf{x}) = A\mathbf{x} + \mathbf{b}\)
- \(f(C)\) is convex
- \(f^{-1}(C)\) is convex
Can scale and shift convex sets

Implication:

Consider following set of constraints:

\[ A\mathbf{x} \leq \mathbf{d} \\ x_1^2 + x_2^2 \leq 4 \]

First constraint is convex set
Second one describes a set where \(x_1\) and \(x_2\) are inside a circle, but rest of coordinates unconstrained

Implication:

Define operator \(P\) that is identity on \(x_1\) and \(x_2\) and ignores the rest:

\[ P = \begin{bmatrix} 1 & 0 & 0 & \cdots & 0 \\ 0 & 1 & 0 & \cdots & 0 \end{bmatrix} \]

Circle of radius \(2\) in \(\mathbb{R}^2\) is convex
Preimage of circle under \(P\) is also convex

Cartesian Product

Have two sets of variables \(\mathbf{x}_1\) and \(\mathbf{x}_2\).
Have two convex sets \(C_1\) and \(C_2\), over each set of variables
Cartesian product of \(C_1\) and \(C_2\) is convex: \[ C_1\times C_2 = \{ \begin{bmatrix} \mathbf{x}_1 \\ \mathbf{x}_2 \end{bmatrix} \, | \, \mathbf{x}_1 \in C_1, \mathbf{x}_2 \in C_2 \} \]
Can freely combine convex sets in different groups of variables

Intersection with an arbitrary line

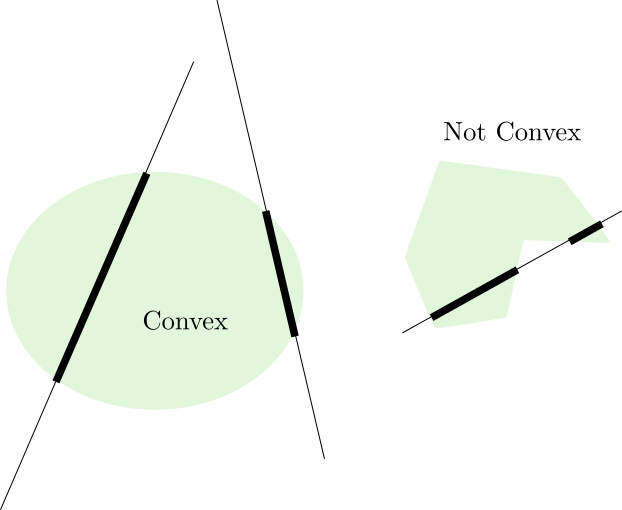

\(C\) is convex if and only if \(C \cap L\) is convex for every line \(L\)

Intersection with an arbitrary line

\(C\) is convex if and only if \(C \cap L\) is convex for every line \(L\)
If \(C\) is convex, then it is true by intersection
If all intersections are convex, then all intersections are segments so \(C\) is convex by the definition

Application: Quadratic Inequality

Consider \(A\succeq 0\)
\[ \{\mathbf{x}\, |\, \mathbf{x}^T A \mathbf{x} + \mathbf{x}^T b \leq \alpha\} \]
Why intuitively should this be convex?
- \(\mathbf{x}^TA\mathbf{x} \leq \alpha\) is an ellipsoid

Quadratic Inequality

Consider \(A\succeq 0\)
\[ \{\mathbf{x}\, |\, \mathbf{x}^T A \mathbf{x} + \mathbf{x}^T b \leq \alpha\} \]
Define line \(L = \{\mathbf{x}\, |\, \mathbf{x} = t\mathbf{v} + \mathbf{v}_0,\, t\in\mathbb{R} \}\)
Substitute: \[ t^2 (\mathbf{v}^TA\mathbf{v} ) + t(2\mathbf{v}^TA\mathbf{v_0} + \mathbf{v}^T\mathbf{b}) \leq \alpha - \mathbf{v_0}^T A\mathbf{v_0} - \mathbf{v}_0^T\mathbf{b} \]

Quadratic Inequality

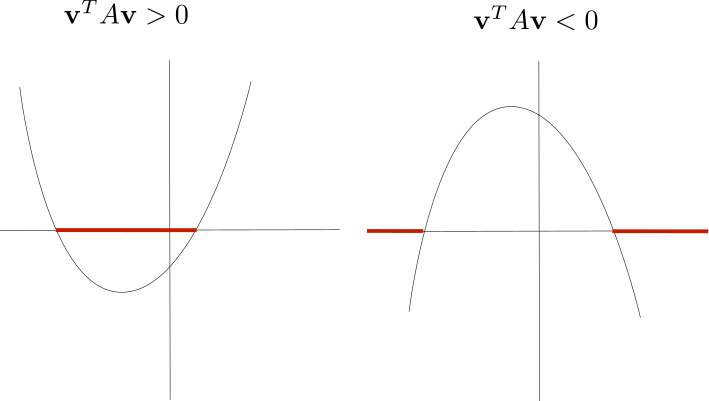

Two possibilities:
\(\mathbf{v}^T A \mathbf{v} = 0\)
- Then it is convex because polyhedron
\(\mathbf{v}^TA\mathbf{v} \geq 0\)
\(\mathbf{x}^T A \mathbf{x} + \mathbf{x}^T b \leq \alpha\) is convex
Doesn’t work if inequality is in other direction

Quadratic Inequality

Example Problem

Suppose we have a variable \(x\) which takes values \(a_i\) for \(i=1,\cdots,n\)
\(p(x=a_i) = p_i\) is a probability distribution
Is the set \(\{\mathbf{p}\, |\, \mathrm{var}(x) \geq \alpha\}\) convex?

How to approach?

\(\mathrm{var}(x) = \sum_{i} p_i(a_i - \bar{x})^2\)
Expand it out more: \[ \mathrm{var}(x) = \sum_{i} \left(p_i a_i^2 \right) - \left(\sum_i p_i a_i\right)^2 \geq \alpha \]
This is a quadratic inequality with matrix \(A=\mathrm{diag}(a_i^2)\)
Thus convex
Then intersection with simplex also convex

Example Problem

What if we wanted variance lower than \(\alpha\)?
Not convex in general

Perspective Function

\(f(\mathbf{x},t) = \frac{\mathbf{x}}{t}\), for \(t>0\)
Interpretation: Image taken through a pinhole camera with hole at origin, surface at \(t=-1\)
\(f(C)\) and \(f^{-1}(C)\) both convex if \(C\) is convex

Linear Fractional Function

Perspective is special case
\(f(\mathbf{x}) = \frac{A\mathbf{x}+\mathbf{b}}{\mathbf{c}^T\mathbf{x}+\mathbf{d}}\)
- for \(\mathbf{c}^T\mathbf{x} + \mathbf{d} \gt 0\)
\(f(C)\) and \(f^{-1}(C)\) both convex if \(C\) is convex

Example: Conditional Probability

Consider discrete probability distribution over two variables: \[p(i,j) = \mathrm{prob(x=i,y=j)}\]
Conditional probability \(p(i|j) = \frac{p(i,j)}{\sum_{i'}p(i',j)}\)
Linear fractional function of joint probabilities
A convex set of joint probabilities becomes a convex set of conditional probabilities

Intro to CVX

CVX is software that solves convex optimization problems
Based on disciplined convex programming or DCP
Has library of functions with known curvature
CVX verifies convexity of objectives and constraints

Intro to CVX

Build expressions out of variables and constants

import cvxpy as cvx

# 6 dimensional vector of unknowns
x = cvx.Variable(6)

# 12x6 dimensional matrix of unknowns
A = cvx.Variable((12,6))

# Scalar variable
y = cvx.Variable()

# Constants are numpy ndarrays

x_mean = np.random.randn(6)

Intro to CVX

atomic functions define objective and constraints

margin = 0.2

problem = cvx.Problem(
  cvx.Minimize(cvx.norm(x)), # Objective (this one is least squares)
  [x - x_mean >= -margin , # These are the constraints
  x - x_mean <= margin]
)

# Check convexity?
obj = cvx.Minimize(cvx.norm(x))
print(obj.is_dcp())

True

Intro to CVX

Use atomic functions to define objective and constraints

margin = 0.2

problem = cvx.Problem(
  cvx.Minimize(cvx.norm(x)), # Objective (this one is least squares)
  [x - x_mean >= -margin , # These are the constraints
  x - x_mean <= margin]
)

# Check convexity of constraints?

print((x - x_mean >= - margin).is_dcp())
print((x - x_mean <=   margin).is_dcp())

True
True

Intro to CVX

Use atomic functions to define objective and constraints

margin = 0.2

problem = cvx.Problem(
  cvx.Minimize(cvx.norm(x)), # Objective (this one is least squares)
  [x - x_mean >= -margin , # These are the constraints
  x - x_mean <= margin]
)

# Check everything at once?

print(problem.is_dcp())

True

Intro to CVX

Use atomic functions to define objective and constraints

margin = 0.2

problem = cvx.Problem(
  cvx.Minimize(cvx.norm(x)), # Objective (this one is least squares)
  [x - x_mean >= -margin , # These are the constraints
  x - x_mean <= margin]
)

# Check everything at once?

print(problem.is_dcp())

True

Intro to CVX

Solve using problem.solve()

margin = 0.2

problem = cvx.Problem(
  cvx.Minimize(cvx.norm(x)), # Objective (this one is least squares)
  [x - x_mean >= -margin , # These are the constraints
  x - x_mean <= margin]
)

# Solve the problem

sol = problem.solve()
print(sol) # objective
x.value # optimum

1.0046020909064826

array([-2.05438373e-01,  7.79376904e-01, -5.67184284e-08,  9.58298071e-03,
        2.46322202e-07, -5.99583391e-01])

Intro to CVX

How about weighted least squares?

margin = 0.2
w = np.sqrt(np.random.random(6))
problem = cvx.Problem(
  cvx.Minimize(cvx.norm(np.diag(w) @ x)), # Objective (this one is least squares)
  [x - x_mean >= -margin , # These are the constraints
  x - x_mean <= margin]
)

\[ \min_{x} \|\mathrm{diag}(w_i)\mathbf{x}\| \\ \mathbf{x}-\mathbf{x}_0 \geq -\sigma \\ \mathbf{x} - \mathbf{x}_0 \leq \sigma \]

Intro to CVX

# Solve the problem

sol = problem.solve()
print(sol) # objective
x.value # optimum

0.9048344241917228

array([-2.05438372e-01,  7.79376905e-01, -1.56850188e-06,  9.58314747e-03,
        1.77039827e-06, -5.99583392e-01])
