DATA 609 Meetup 8: Constructing Convex Functions

George I. Hagstrom

Week Summary

• Operations that Preserve Convexity
• Application to Disciplined Convex Programming
• Keep Working on Lab 4
• Read Section 3.2, skim and 3.4, skim 3.5 if you have time/interest
• I will make quasiconvex part of of homework optional

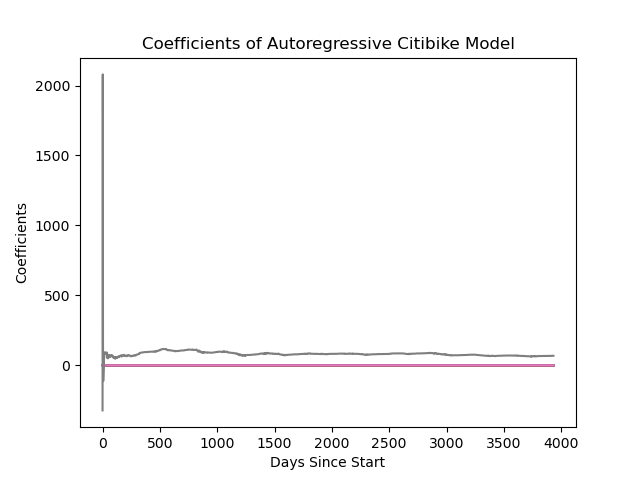

HW 2 Review Visualization

• Don’t do this

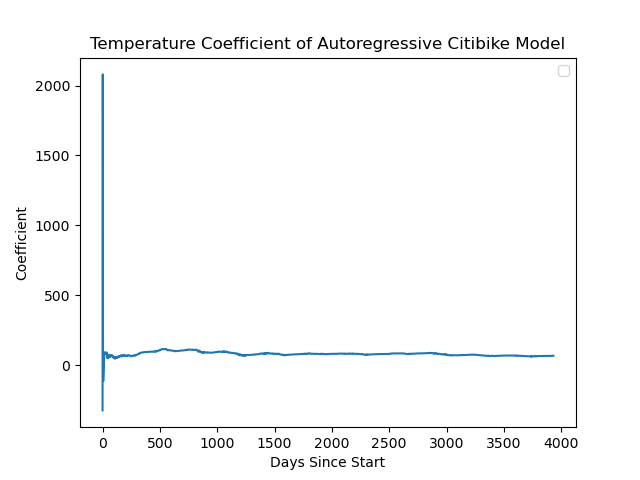

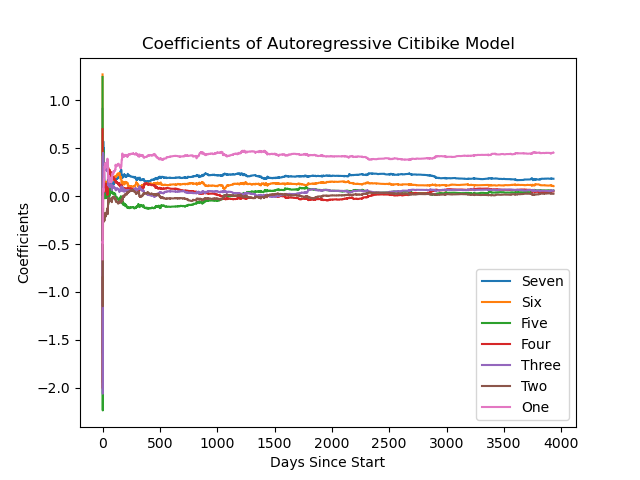

HW 2 Review Visualization

• Do this instead

HW 2 Review Package versus Exact

• Packages versus Exact Formula
• Intended method

\[ \begin{bmatrix} 2A^TA & C^T \\ C & 0 \end{bmatrix} \begin{bmatrix} \mathbf{\theta} \\ \mathbf{z} \end{bmatrix} = \begin{bmatrix} 2A^T\mathbf{x} \\ \mathbf{d} \end{bmatrix} \]

HW 2 Review

• Packages versus Exact Formula
• Package methods had varying results
  • CVX successful
  • quad_prog successful
  • scipy.minimize unsuccessful
• SLSQP finicky

Personal Story

• Was trying to replicate and build upon a modeling study

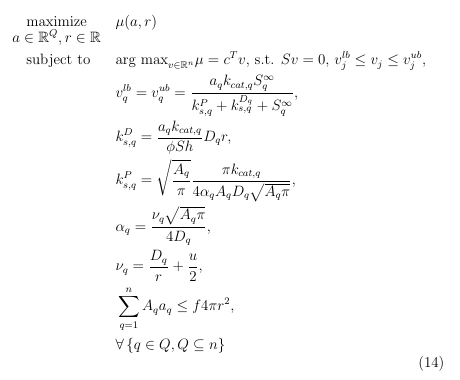

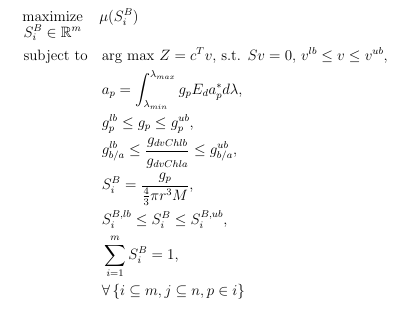

• Based on optimization problem:

\[ \max_{\nu,\mathrm{x}} \mu_{\nu,\mathrm{x}} \\ S\nu = 0\,\quad\mathrm{x} \in \mathrm{Simplex} \]

• Find traits and fluxes that maximize growth rates of prochlorococcus

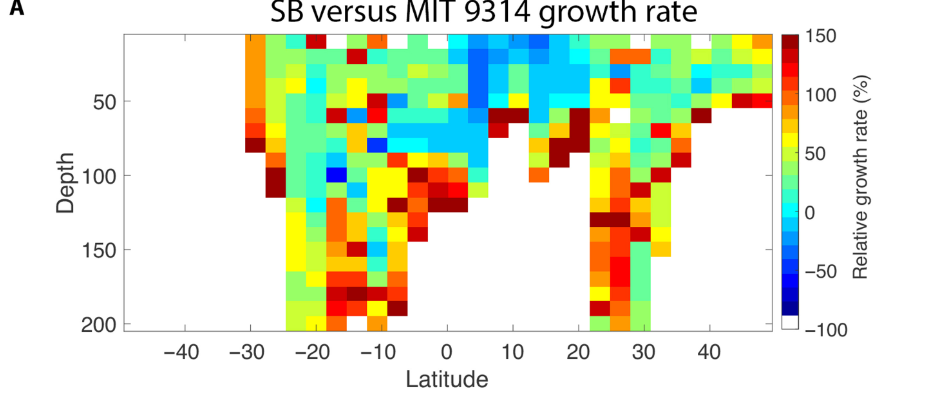

Personal Story

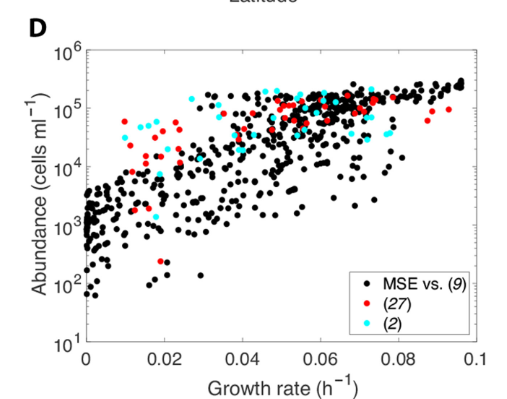

Witness Protection

Personal Story

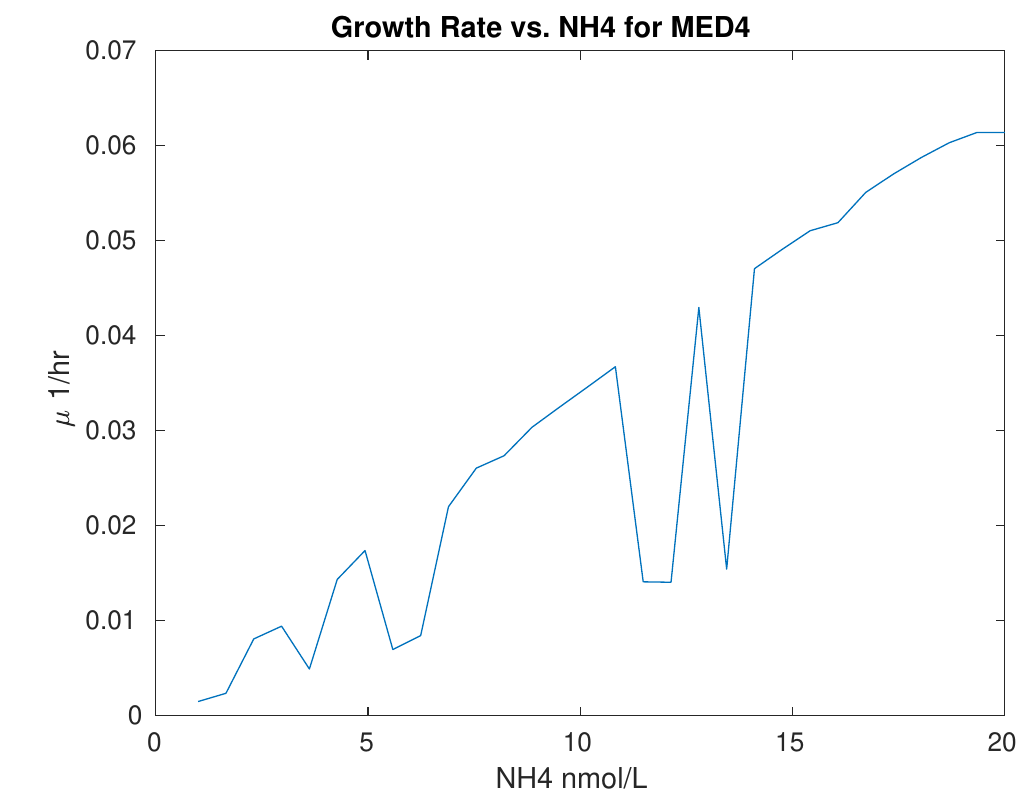

• Author of study chucked problem into matlab without regard for the solver
• Solutions had pleasing levels of “noise”

Personal Story

• Author of study chucked problem into matlab without regard for the solver
• Solutions had pleasing levels of “noise”

Personal Story

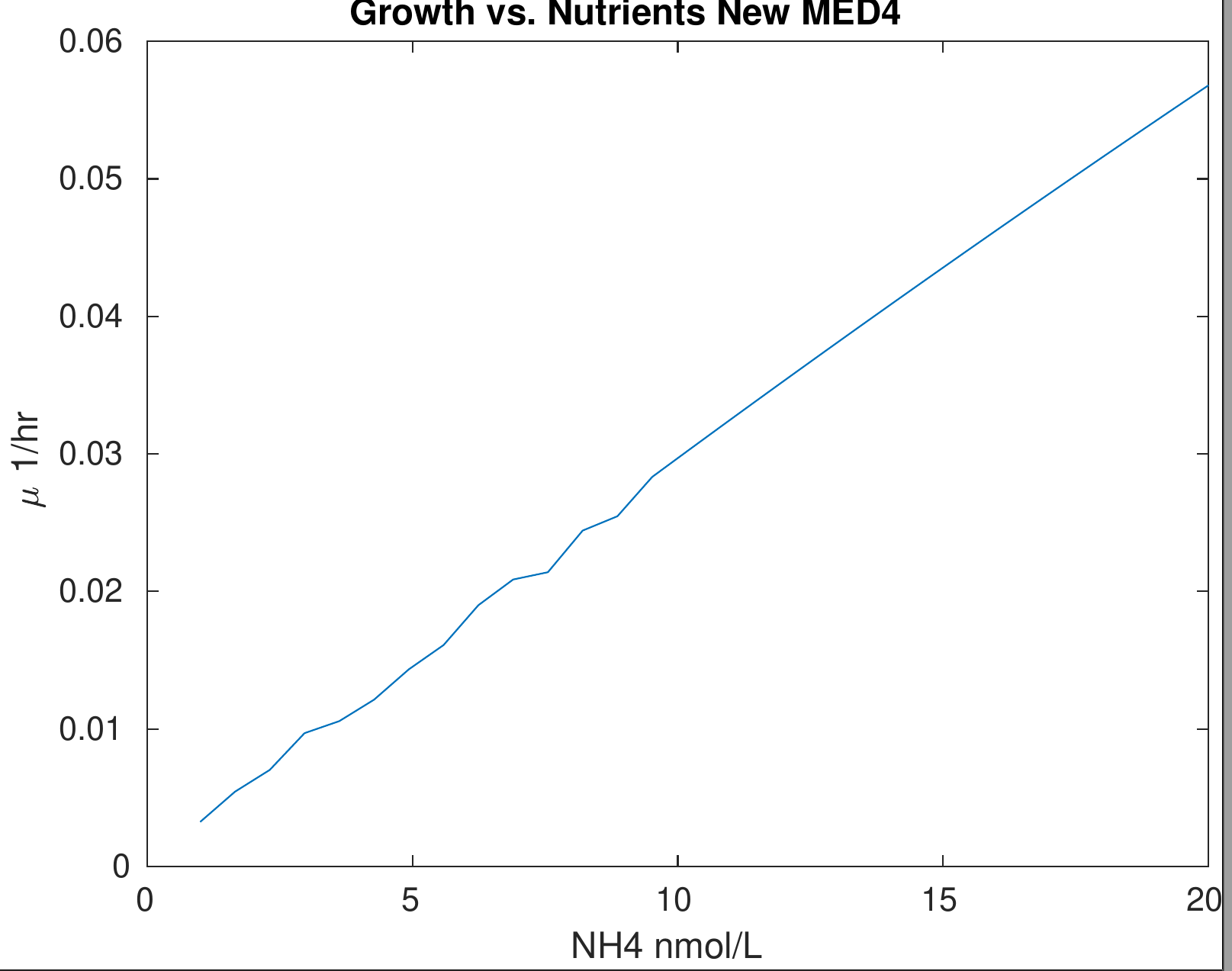

• Turns out solver wasn’t appropriate for problem
• Was failing to converge, introducing randomness

Witness Protection

How to show a function is convex?

• Apply the definition?
  • Rare, project onto line
• Check the Hessian
  • Rare, simple cases only
• Construct the function from simpler elements
  • 99+% of the time
  • Several fundamental rules
  • All are special cases of a single rule

Scalar Multiplication

• If \(f\) is convex and \(\alpha\gt 0\), then:
  • \(\alpha f\) is convex
• If \(\alpha < 0\) the \(\alpha f\) is concave

Positive Weighted Sum

• If \(f_i\) is convex, \(\alpha_i\) positive, then

\[ F(x) = \sum_i f_i(x) \]

• \(F\) is convex
• Application: Regularize to your heart’s content \[ f(\mathbf{x}) + \lambda \|\mathbf{x}\|_1 \]

Integration

• Suppose \(g(\mathbf{x},\mathbf{y})\) convex in \(\mathbf{x}\) for fixed \(\mathbf{y}\)
• Suppose \(w(\mathbf{y}) > 0\) \[ G(\mathbf{x}) = \int_{Y} \mathbf{dy} w(\mathbf{y})g(\mathbf{x},\mathbf{y}) \]
• \(G(\mathbf{x})\) is convex

Example: Running Average

• Let \(f\) be a convex function and define: \[ F(x) = \frac{1}{x}\int_0^x dt f(t) \]
• Can substitute \(t=sx\) into integral: \[ F(x) = \frac{1}{x}\int_0^1 ds x f(sx) = \int_0^1 ds f(sx) \]
• \(f(sx)\) is convex in \(x\) for fixed \(s\). Therefore \(F(x)\) is convex

Composition with Affine Function

• Suppose that \(f(\mathbf{x})\) is convex
• Then \(g(\mathbf{y}) = f(A\mathbf{y} + \mathbf{d})\) is convex
• This also preserves concavity
• Application: \(\|A\mathbf{x}-b\|_p\) convex for any norm

Pointwise Maximum

• Suppose we have a bunch of convex functions \(f_1\), \(f_2\), …., \(f_n\) \[ F(x) = \max\left(f_1(x),f_2(x),\cdots,f_n(x)\right) \]
• \(F(x)\) is convex

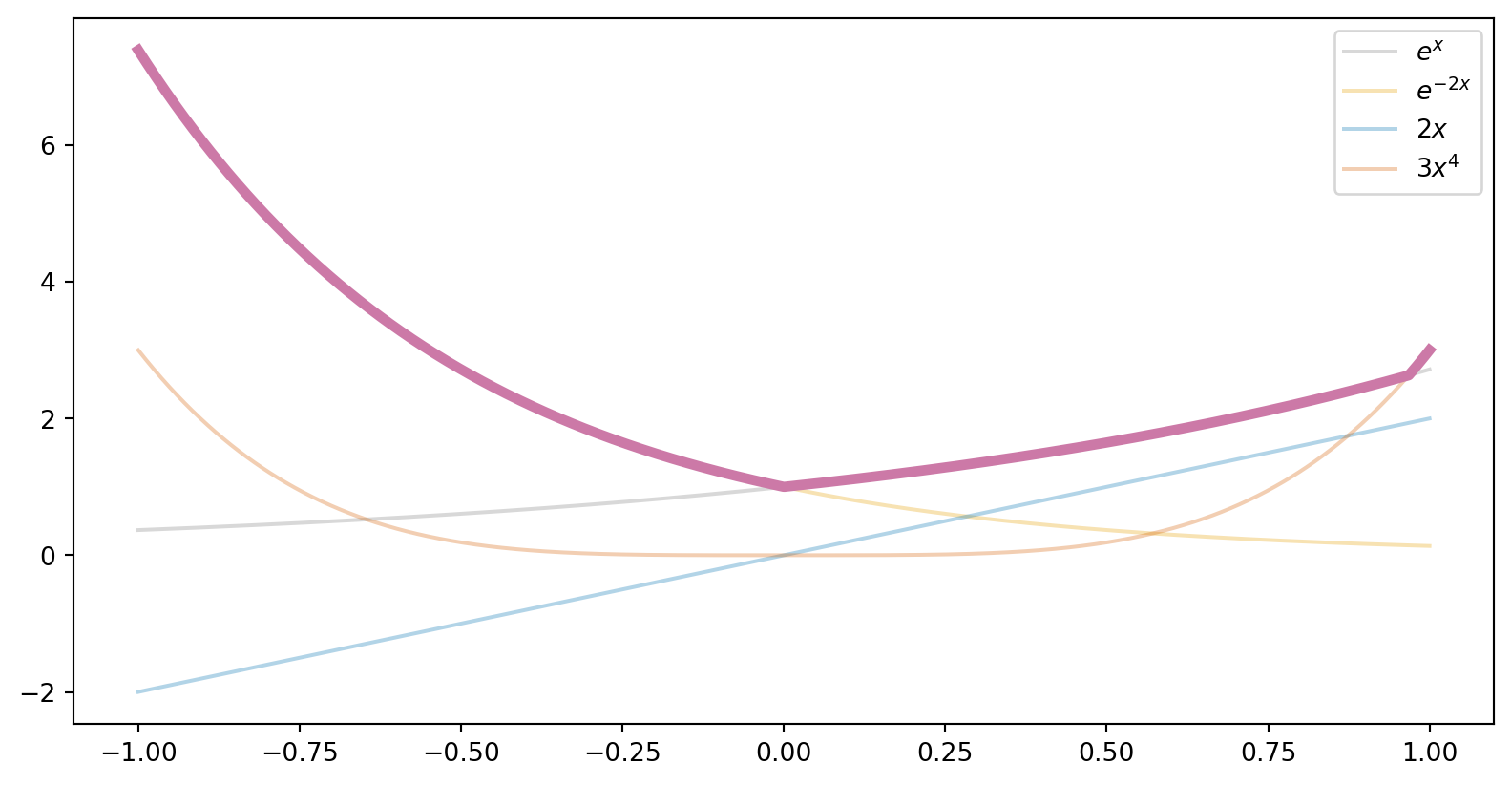

Pointwise Maximum

Example: Worst-Case Scenario

• Suppose \(f_i\) is the cost function of \(i\)th people in your organization
• \(f_i\) convex
• \(x\) is a choice you are making
• Can define worst case cost function: \[ f_W(x) = \max(f_1(x),f_2(x),\cdots,f_n(x)) \]
• \(f_W(x)\) is convex

Pointwise Supremum

• supremum is least upper bound (think of it like infinite max)
• if \(f(x,\alpha)\) is convex in \(x\) for all \(\alpha \in A\), then: \[ F(x) = \sup_{\alpha\in A} f(x,\alpha) \]
• Then \(F(x)\) is convex

Pointwise Supremum examples

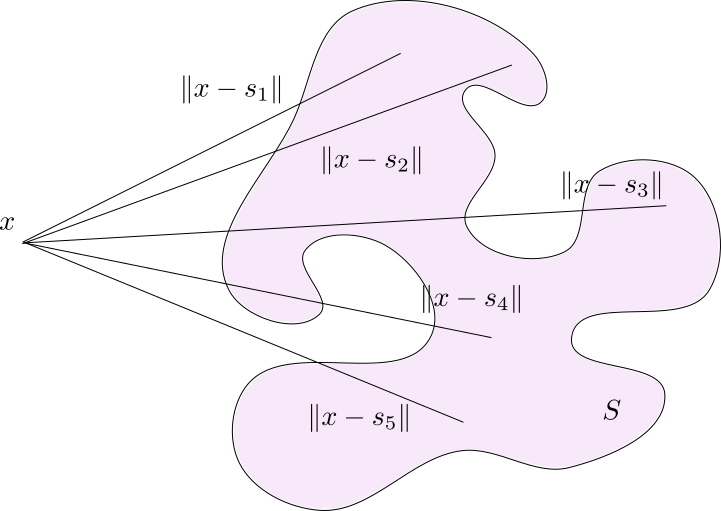

• Placing a transmitter at a location \(x\)
• Care about maximum distance from the transmitter to a region \(S\)
• \(d(x) = \sup_{y\in S}\|x-y\|\) is convex

Pointwise Supremum Examples

Largest eigenvalue of a symmetric matrix

• Eigenvalue satisfies \(Sv = \lambda v\)
• \(\sup_{\|v\|=1} v^T S v = \lambda_{\mathrm{max}}\)
• Intuition: \(S\) can be thought of according to its eigenvalues and eigenvectors
• Biggest eigenvalue corresponds to direction of maximum stretch
• \(\lambda_{\mathrm{max}}(S)\) is a convex function of \(S\)

Scalar Composition

• \(f\) is a function from \(\mathbb{R}^n\to\mathbb{R}\)
• \(g\) is a function from \(\mathbb{R}\to\mathbb{R}\)
• \(g(f(x))\) is convex if
  • \(g\) is convex and non-decreasing, \(f\) is convex
  • \(g\) is convex and non-increasing, \(f\) is concave
• \(g(f(x))\) is concave if
  • \(g\) is concave and non-increasing, \(f\) is convex
  • \(g\) is concave and non-decreasing, \(f\) is concave

Scalar Composition

• Trick to remember, use chain rule \[(g(f(x)))'' = (g'(f(x))f'(x))' =\\ g''(f(x))f'(x)^2 + g'(f(x))f''(x)\]

  • Sign of both needs to match for certainty over convexity
  • \(g''\geq 0\) only convex is possible, need \(g'f''\geq 0\)
  • \(g''\leq 0\) only concave is possible, need \(g'f''\leq 0\)

Scalar Composition Examples

• \(e^{f(x)}\) is convex if \(f\) is convex (exp convex increasing)
• \(\log(f(x))\) is concave if \(f\) is concave (log concave increasing)
• \(1/f(x)\) is convex if \(f\) is concave (1/x convex decreasing)

Vector Composition (One Rule to Rule them All)

• Let \(h(x_1,x_2,\cdots,x_k):\, \mathbb{R}^k\to\mathbb{R}\)
• Let \(g(\mathbf{x}) = [g_1(\mathbf{x}),g_2(\mathbf{x}),\cdots,g_k(\mathbf{x})]^T: \mathbb{R}^n\to\mathbb{R}^k\)
• Replacing “coordinates” \(h\) by \(g_i\)’s

Vector Composition

• \(f(\mathbf{x}) = h(g_1(\mathbf{x}),g_2(\mathbf{x}),\cdots,g_k(\mathbf{x}))\) is convex if:
  • \(h\) is convex
  • \(g_i\) is convex and \(h\) is non-decreasing in arg \(i\)
  • \(g_i\) is concave and \(h\) is non-increasing in arg \(i\)
• \(f\) is concave if:
  • \(h\) is concave
  • \(g_i\) is concave and \(h\) is non-increasing in arg \(i\)
  • \(g_i\) is convex and \(h\) is non-decreasing in arg \(i\)

Examples

• \(\log\left(e^{x_i} \right)\) is convex, increasing in all arguments
  • Therefore \(\log\left(e^{g_i(\mathbf{x})}\right)\) is convex
• \(f(x,y) = x^2/y\) (quadratic over linear)
  • \(h(x) = \frac{p(x)^2}{q(x)}\) is convex if:
  • \(p\) non-negative and convex
  • \(q\) positive and concave

Automatic Convexity Checking

• CVX works by building an evaluation tree for each function
• CVX starts at leaves and builds up, applying vector composition rule
• Each function is either convex, concave, or unknown
• Sign of each expression is tracked (+,-,unknown)
• Atoms are sometimes increasing/decreasing depending on sign

Automatic Convexity Checking

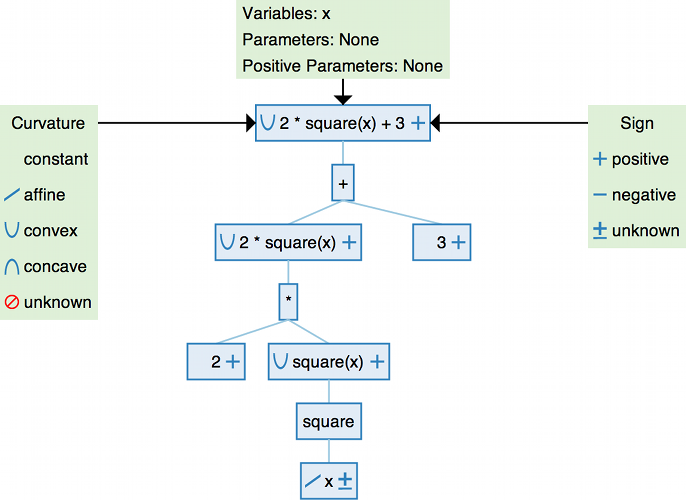

• \(2x^2+3\)

Automatic Convexity Checking

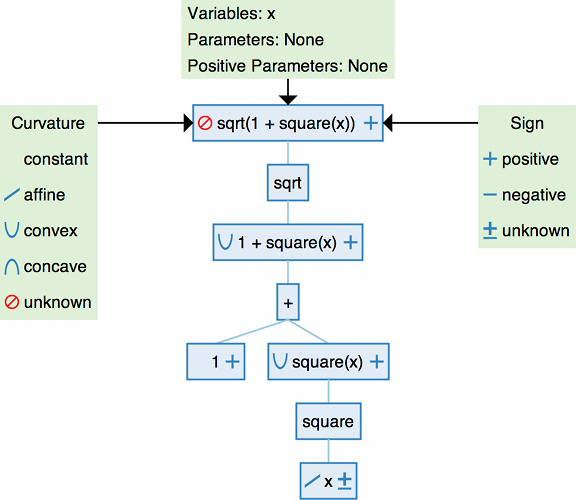

• \(\sqrt{1+x^2}\)

Automatic Convexity Checking

• \(\sqrt{1+x^2}\) is convex though…..
• \(\sqrt{1+x^2} = \|[1,x]\|_2\)
• Can use convexity of the norm:
  • norm(hstack(1,x)) is DCP
  • Vector composition on Affine function \(1\)
